Centralized Welding Fume Exhaust System

  • Centralized Welding Fume Exhaust System
  • Centralized Welding Fume Exhaust System
  • Centralized Welding Fume Exhaust System
  • Centralized Welding Fume Exhaust System

Centralized Welding Fume Exhaust System

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 15 Days
    Packaging: Box
    Productivity: 100sets/Month
    Brand: Moland
    Transportation: Ocean,Land
    Place of Origin: Jinan City, Shandong Province, China
    Supply Ability: 100sets/Month
    Certificate: CE, ISO9001,ISO14001
    HS Code: 8421399090
    Port: Qingdao

Basic Info

Model No.: MLWF3000

Product Description

Dust purifier
· Suitable for: welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and cutting materials to produce

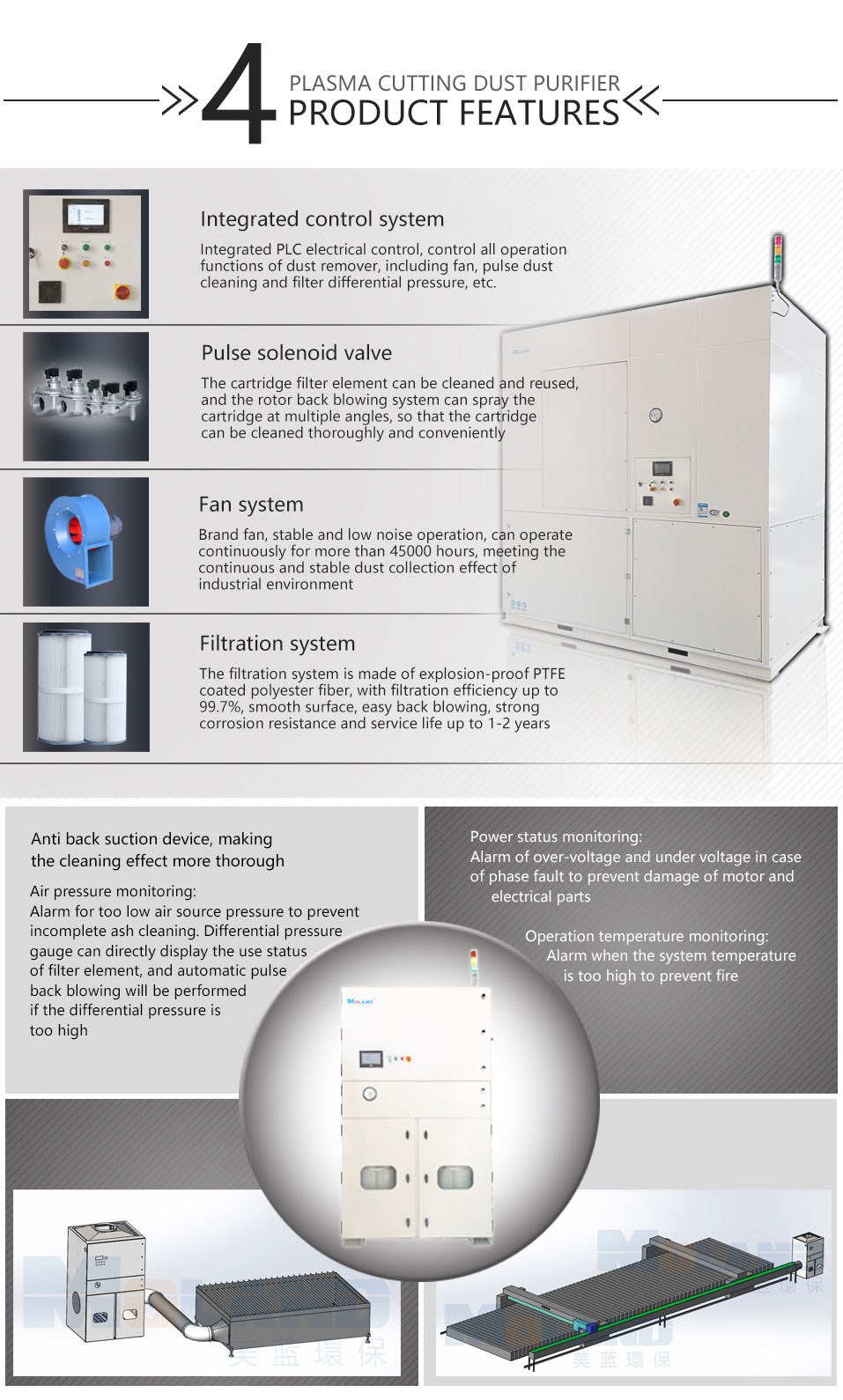

Performance description
· Integral structure, beautiful appearance, small area
· Anti-suction device and all-directional rotor ash cleaning system make the effect of ash cleaning more thorough
· Power supply condition monitoring: alarm for broken phase overvoltage and undervoltage to prevent motor and electrical components from damage
· Pneumatic condition monitoring: alarm of low pressure of air source to prevent incomplete ash cleaning. Pressure differential meter shows the use status of filter element intuitively, and high pressure differential auto-pulsed rotor backblowing
· Operation temperature monitoring: alarm system temperature is too high to prevent fire
· Dust hopper condition monitoring: the system senses the lock state of the dusthopper, with the automatic lifting function of the dusthopper, to ensure that the dusthopper is in place, to
improve the tightness of the dusthopper, and to ensure the effect of dust collection.

Standard configuration
· Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault phase protection, overload protection, air pressure monitoring and temperature monitoring devices
· PLC Intelligent Control System
· Tri-color lamp
· Pressure differential gauge
Power 37kw
Voltage 380V / 50Hz
Air Volume 30000-35000m³/h
Accuracy 0.3μm
Filter material PTFE Cartridge Filter
Filter Area 290m²
Filter Size ∅325*600mm (36 branches)
Cleaning Automatic dedusting
Noise 75dBA
Size 3000×1550×2800mm
Weight 1600kg

Smoke and Dust Exhaust System

Welding Smoke Exhaust System
Central Dust Collection System
Central Dust Collection System

Jinan Moland Environmental Tech Co.,Ltd


Established in 2016, Jinan Moland Environmental Tech Co., Ltd. is located in No. 11889 Jingshixi Road, Jinan Economic Development Zone. It is an environmental protection technology enterprise specializing in research, development, manufacture and sale of efficient smoke purification system.

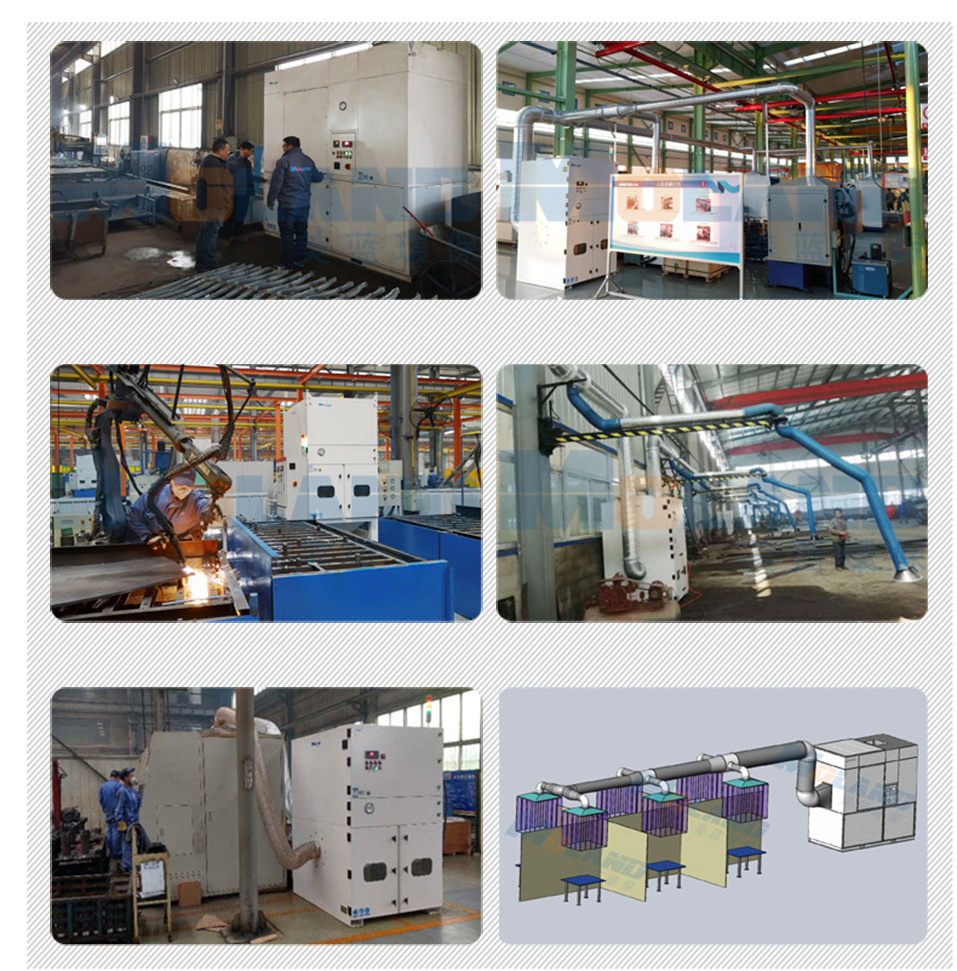

The company is committed to reducing the environmental impact of production process, protecting workers from harmful gases and dust, and creating a cleaner working environment. At present, the company′s products have been successfully applied in automobile, railway, construction machinery, marine engineering, aviation and other mechanical processing industries, as well as new materials, grain, wood, recycled resources processing and other industries. The company has passed the ISO 9001 quality management system certification, obtained the certification certificate of China Environmental Protection Products issued by China Environmental Protection Industry Association, and CE certification of EU. It also has a number of invention patents, utility model patents and appearance patents. Through continuous R&D and innovation, many products of the company have reached the international leading level.

Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.
